Description of Chroma 19070 Sentry Hipot Tester AC/DC/IR 19071 19073

The Sentry 19070 Hipot Tester series provides 2 models to choose from. The Sentry 19071 for AC Hipot testing; and the Sentry 19073, which combines both AC and DC Hipot with insulation resistance (IR) measurements into a single compact unit.

The O.S.C function is used to check whether the connection is an open connection or that a short circuit exists between an instrument and DUT (equipment under test) before the Electrical Safety Test. If there is a bad connection between the instrument and DUT, for instance a bad lead or relay oxidation, the test will also PASS. In some cases, the DUT has a short before testing. In this case, testing can lead to a broken test instrument due to the high load current. Therefore, our test devices check for open and short circuit conditions to ensure effective testing and protect instruments.

Generally, DUT have capacitive load (Cx) from tens to thousands of pF. If there is an open connection, a capacitance will appear and total capacitive load will be lower than normal conditions. If the DUT is shorting, total capacitive load is higher than that in normal conditions. Therefore, we can measure the value of capacitive load to check whether the contact is good or not.

Key Features of Chroma 19070 Sentry Hipot Tester AC/DC/IR 19071 19073

• ACWV/DCWV/IR 3 in 1 hipot tester
• Programmable output voltage to 5kV AC and 6kV DC
• 1kV insulation resistance test
• Insulation resistance measurement from 1MΩ to 50GΩ
• Ground continuity check (GC)
• Standard RS-232 interface
• Open short check(OSC) function
• GFI shutdown of the instrument when current imbalance > 0.5mA
• Flashover (ARC) detection
• Quick discharge of DUT in IR and DC test
• Pause mode
• UL and TUV approved (*see spec.)
• CE mark
• Programmable ramp/fall and test time
• Programmable high/low limit
• Save/Recall program test function
• Remote control and interface support

Panel Description of Chroma 19073 Sentry Hipot Tester AC/DC/IR

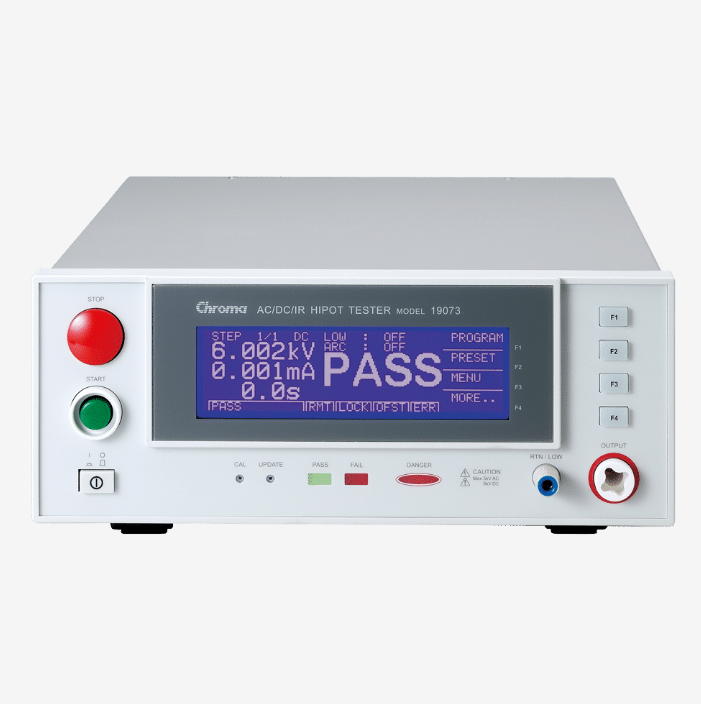

1. LINE Switch 2. Window Display 3. Stop Button 4. Start Button 5. Function Keys (F1~F4) 6. Pass Indicator 7. Fail Indicator    8. Test Indicator 9. HV Output 10.RTN/LOW 11.8 channels HV Output (19053 only) 12.Remote I/O 13.LINE Voltage Selector 14.Power Cord Receptacle 15.Rear HV Output & RTN/LOW 16. GPIB/Printer Interface (option) 17. Scan Interface (option) 18. Fan 19. Remote Interface 20. RS-232 Interface 21. Continuity Test O/P
