Rf-Spectrumanalysator
Created with Pixso. Keysight (Agilent) N9918A FieldFox Handheld Microwave Combination Analyzer, 26.5 GHz
Gedetailleerde informatie
Plaats van herkomst:
Maleisië
Certificering:
CE
Productnaam:
Analysator van de FieldFox de Handbediende Microgolf
Frequentie:
26.5GHz
Vormfactor:
Draagbare rek
Gemiddeld Geluidsniveau:
-151 dBm
Voorwaarde:
Gebruikt
Functies:
Getest, in volledige werkomstandigheden
Verpakking Details:
KARTON
Levering vermogen:
op voorraad
Markeren:

Keysight N9918A handheld RF analyzer

,

FieldFox microwave combination analyzer 26.5GHz

,

Agilent handheld spectrum analyzer with warranty

Productbeschrijving

Keysight (Agilent) N9918A FieldFox Handheld Microwave Combination Analyzer, 26.5 GHz

Description of N9918A

Cable and antenna analyzer (CAT), vector network analyzer (VNA)

  • 30 kHz to 26.5 GHz
  • CAT: Distance-to-fault, return loss, cable loss
  • VNA dynamic range: 100 dB to 9 GHz, 90 dB to 18 GHz
  • VNA: S11, S21, S22, S12, magnitude and phase
Spectrum analyzer
  • 5 kHz to 26.5 GHz
  • ± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55 °C (14 to 131 °F)
  • Spur-free dynamic range: = 105 dB
  • Full-band tracking generator
Independent source, vector voltmeter (VVM) and power measurements
  • RF source: 30 kHz to 26.5 GHz, CW, CW coupled, and tracking
  • VVM: 30 kHz to 26.5 GHz, compare phase and electrical length
  • Average and peak power measurements with USB sensors
  • Built-in power meter: 5 kHz to 26.5 GHz
FieldFox instrument attributes
  • New: Remote control via iPad or iPhone
  • Standard 3-year warranty
  • Battery life: 3.5-hours; weight: 3.0 kg or 6.6 lbs
  • Operating temperature: -10 to +55 °C (14 to 131 °F)

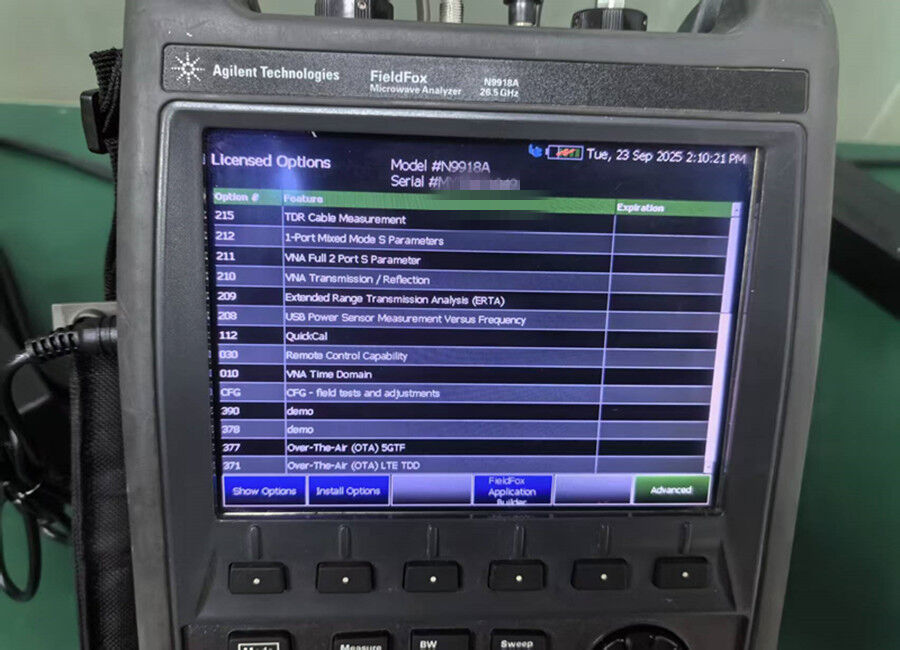

List of Options for N9918A
010 Vector network analyzer time domain
030 Remote Control Capability
112 QuickCal
210 Vector network analyzer transmission/reflection
211 Vector network analyzer full 2-port S-parameters
212 1 Port mixed-mode S Parameter
215 TDR cable measurements
233 Spectrum analyzer
235 Pre-amplifier
236 Interference analyzer and spectrogram
238 Spectrum Analyzer Time Gating
302 USB power sensor support
307 GPS receiver
308 Vector voltmeter
309 DC bias variable-voltage source
310 Built-in power meter
350 Real Time Spectrum Analyzer
N9910X RF & MW Handheld Analyzer Accessories

Keysight (Agilent) N9918A FieldFox Handheld Microwave Combination Analyzer, 26.5 GHz 0Keysight (Agilent) N9918A FieldFox Handheld Microwave Combination Analyzer, 26.5 GHz 1Keysight (Agilent) N9918A FieldFox Handheld Microwave Combination Analyzer, 26.5 GHz 2
